Electrical failures are frustrating. They hide without warning. Your crane runs fine one shift. The next shift, a warning light blinks or a control stops working. Unlike a hydraulic leak you can see, electrical problems live inside wires and plugs. But you do not need to be an expert. A patient, logical search finds the cause.
Your Kobelco crane has a network of sensors and computers. They share data constantly to manage safety and performance. When one piece fails, the whole system can react strangely. Knowing where to start saves time. It also keeps you from swapping good parts and wasting money.
Start with Power and Ground

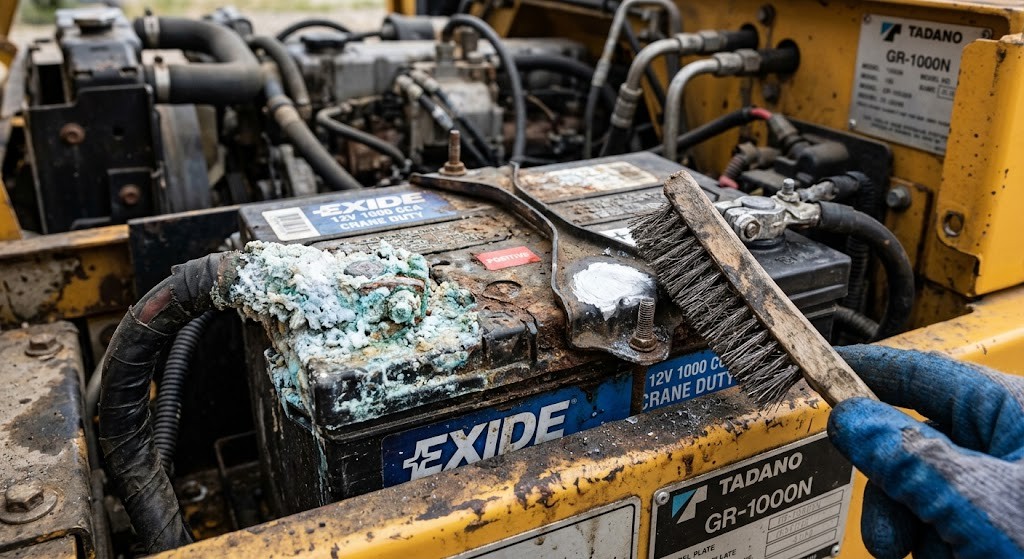

Most electrical issues come from bad power or a poor ground. Without clean, steady voltage, the system will not work right. Begin at the battery. Check the terminals for corrosion. Clean off any white or green buildup. Make sure the clamps are tight. A loose terminal causes intermittent glitches that are hard to track.
Next, find the chassis ground. Follow the negative cable to where it bolts to the frame. Rust or paint can block the connection. Scrape the metal clean. Tighten the bolt firmly. A bad ground creates false sensor readings and random controller resets. Fixing the ground often solves everything without any new parts.
Fuses and Relays: The Low‑Hanging Fruit
Fuses blow to protect circuits from overload. If a fuse keeps blowing, there is a short somewhere. Do not just replace it and hope. Find the real problem. Look for pinched insulation or bare copper touching metal. Check where wires rub against sharp edges.
Relays also fail over time. They click to turn high‑current devices on and off. Inside, the contacts wear down or carbon up. A bad relay may work sometimes and fail others. Swap the suspect relay with a known good one of the same type. If the problem follows the relay, you have found the culprit. Keep spare fuses and relays in your toolbox. They are cheap insurance against expensive downtime.
Decode Error Messages Carefully
Modern Kobelco cranes display error codes when something goes wrong. These codes point you toward the problem area. But they are not always literal. A code for a sensor fault might mean the sensor is bad. Or it might mean the wiring to the sensor is broken. Or the connector is corroded. The code tells you where to look, not necessarily what to replace.
Write down the code. Look it up in the service manual. The manual often lists possible causes and testing steps. Follow those steps systematically. Do not jump to replacing the most expensive part first. Test the simple things. Check continuity in the wiring. Measure voltage at the connector. Verify sensor resistance. These basic tests rule out easy fixes before you order any Kobelco crane parts.
Wiring and Connectors Are the Real Troublemakers
Wiring takes a beating on a crane. Vibration loosens connections. Moisture seeps into plugs. Heat hardens insulation. Walk along the harnesses. Look for chafed wires, especially where they pass through metal or near moving parts. A small rub spot can expose copper and cause a short.
Connectors deserve special attention. Unplug them and inspect the pins. Are they bent or corroded? Is the rubber seal intact? A pin that does not make good contact causes intermittent faults. Clean connectors with electrical contact cleaner. Apply dielectric grease to prevent future corrosion. When reconnecting, listen for the click. A partially seated connector is a common source of headaches. Using genuine Kobelco crane parts for damaged connectors ensures a proper fit and weather seal.
Test Sensors and Switches Properly
Sensors tell the crane what is happening. Angle sensors, pressure transducers, and limit switches all feed data to the controller. When one fails, the crane might limit functions or throw errors. Testing them requires a multimeter and the specifications from the manual.
Start with resistance checks. Many sensors have a specific resistance range. If your reading shows an open circuit or a value far off spec, the sensor is likely bad. For switches, check continuity in both positions. A limit switch should open or close when actuated. If it does not, replace it. When ordering replacements, use authentic Kobelco crane parts to ensure the electrical specs match. A sensor with the wrong output voltage can confuse the controller even if it physically fits.
The Controller Is a Last Resort
The controller is the brain. It processes inputs and commands outputs. If everything else checks out, the controller might be the issue. But controllers rarely fail without cause. Often, a problem elsewhere stresses the controller. A short circuit can damage output drivers. Voltage spikes can corrupt memory. Water intrusion can rot internal components.
Before replacing a controller, verify power and ground at its connectors. Check for water intrusion. Look for burnt components or swollen capacitors. If you suspect the controller, consult a specialist. Reprogramming or calibration might be needed after replacement. This is not a job for guesswork. Document any error codes and test results to help the technician diagnose faster.
Keep Good Records for Future Repairs
Electrical troubleshooting is easier with a history. Keep a log of issues and fixes. Note which error codes appeared. Record what tests you ran and what you replaced. This log helps spot patterns. If the same circuit fails repeatedly, there might be a deeper problem to address.
Good records also help when you need outside help. If you call a technician or your supplier, you can give them the full story. They will not have to start from scratch. This speeds up the repair. It also builds your own knowledge base. Over time, you will recognize common failure points on your specific machines. When you do need to order Kobelco crane parts, your log will remind you what worked last time.
Know When to Call a Professional
Some electrical problems are beyond basic troubleshooting. If you have checked power, ground, wiring, and sensors, and the issue persists, it may be time to call in support. Complex CAN bus issues or controller programming require specialized tools and knowledge.
There is no shame in getting help. Guessing on complex electrical work can make things worse. A miswired connector can damage expensive components. If you are out of your depth, stop. Document what you have done. Share that with the expert. This collaboration gets the crane back online faster and safer.
Final Thoughts
Electrical diagnosis does not have to be intimidating. Start simple. Check power and ground. Inspect fuses and relays. Follow the wiring. Test sensors methodically. Use error codes as guides, not gospel. When you need replacements, choose genuine Kobelco crane parts to ensure compatibility.
Keep good records. Know your limits. Patience pays off. Rushing leads to mistakes. A calm, logical approach finds the problem faster. Your Kobelco crane relies on clean electrical signals to operate safely. Taking the time to diagnose right protects your investment and keeps your crew working. That is how you turn a frustrating mystery into a straightforward repair.
